300Mbps CAPWAP FIT Wall Sock WiFi AP for Home Decoration Multi SSID Supported
Description
It is an in wall AP with 300Mbps data rate with Qualcomm Chipset, with 3*RJ45 ports and 1*RJ11 port, designed for hotel/home mainly to provide Wi-Fi Internet access for users and LAN internet for TV/PC... in hotel room, guest room, living room and lobby.
It support 802.3af PoE, compliant with any 802.3af Power over Ethernet equipment, easy in setting and complete the full Wi-Fi coverage.
Main Features:
1.In wall design, match with the cassette with size of 86mm or 75mm, easy to complete the hotel Wi-Fi cover.
2.Compliant with IEEE 802.11b/g/n standard, 300Mbps in data rate, more faster in download, more freely in internet surf.
3.Support 802.3af PoE, can be powered by any powered by any 802.3af Power over Ethernet equipment, cost savely
4.It has 3 RJ45 ports,two on the front allowing wired access for guests, TV, and one on the rear for network service and power provision. Then the RJ11 port can work with telephone for voice function.
5.Must work with CAPWAP AC Controller and cloud server for easy management or advertisement or portal authentication: the IT staff can sets up different IP addresses, ESSID and manages each room’s AP at the same time.
Spec:
| Wireless |
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Data Rate | 11n: 300Mbps 11g: 54Mbps 11b: 11Mbps |
| Frequency Range | 2.4-2.4835GHz |
| Wireless Transmit Power | 11n @MCS7:14±2DB, @MCS0:16±2DB. 11g @54M:15±2DB, @6M:17±2DB. 11b @11M:18±2DB, @1M:20±2DB. |
| Modulation Type | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
| Receive Sensitivity | 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. |
| EVM | 802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
| MAX Users | 64 |
| Operation Mode | AP |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES) |
| System Requirements | Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS |
| Hardware |
| Chipset | Qualcomm QCA9531 |
| Flash | 16M |
| SDRAM | 64M |
| Interfaces | 3 x 10/100Mbps LAN/WAN Port, 1 x RJ11 port |
| Button | Reset Button |
| Antenna | MIMO 2dBi Build-in omni-directional Antenna |
| Power Supply | 802.3af PoE |
| Dimensions( W x D x H ) | 86mm*86mm*35mm |
| Others |
| Operating Temperature | -20°C~55°C |
| Storage Temperature | -40°C~70°C |
| Relative Humidity | 10% ~ 90%, Non-condensing |
| Storage Humidity | 5%~95%, Non-condensing |
| Certifications | RoHS |
| Package Contents | 1 x in wall AP 1 x Quick Installation Guide 1 x setting accessory |
Working Diagram:

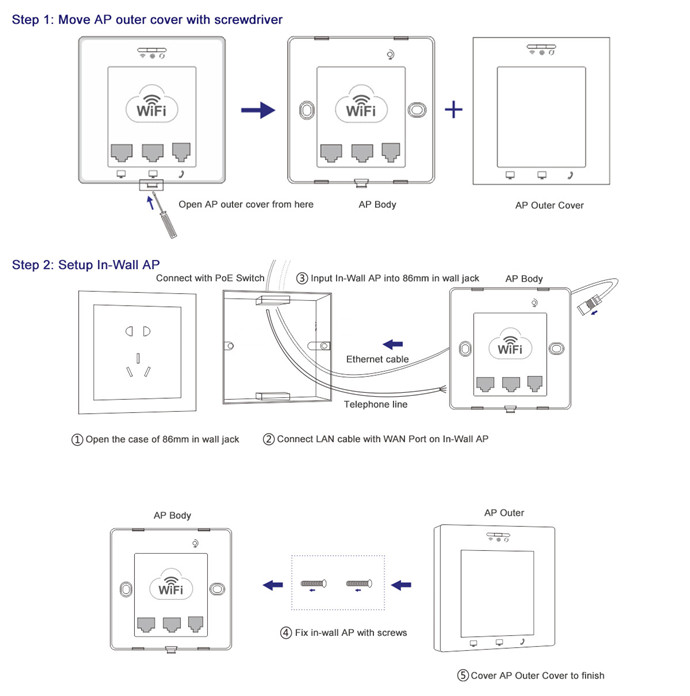

Installation:
